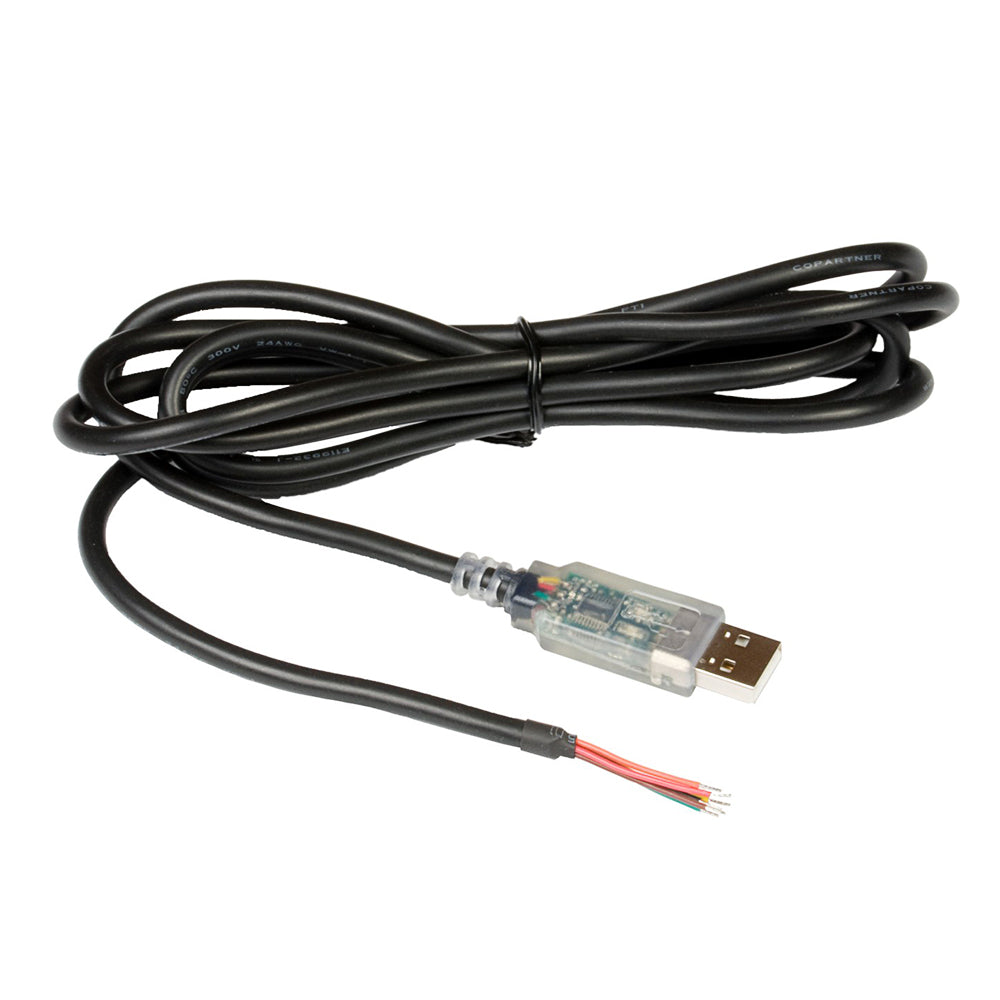

NMEA 0183 to USB Adaptor

KEY FEATURES

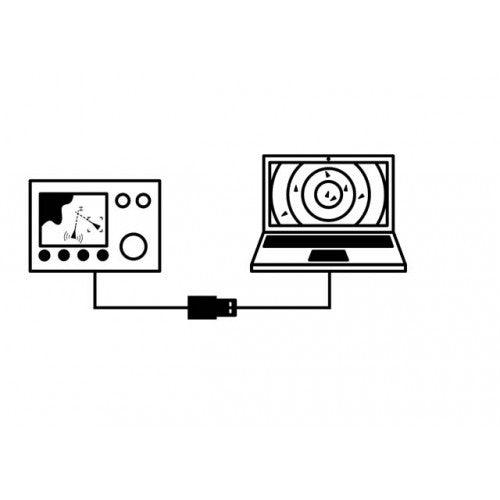

The NMEA 0183 to USB adaptor works on PCs, Macs, and Linux computers. It converts NMEA 0183 data, used by many marine systems, into a USB format that can be plugged into most modern computers. The adaptor is a bi-directional device. Therefore, data can be sent to and from systems and supports traditional 4800 baud data or the higher speed 38400 baud rate used by AIS systems. LEDs show data being received and transmitted. Thus helping with interfacing issues and encapsulating all the electronics into the connector.

The device creates a virtual COM port on the PC which navigation and charting software can use to read NMEA data. If necessary, multiple adaptors can be connected. This effectively allows the creation of any number of NMEA ports on your PC. Drivers for this device can be downloaded from our website. It’s Windows XP/7/8/10 compatible. MAC and Linux/Raspberry Pie drivers are also available.

SPECIFICATIONS

• Converts NMEA 0183 into USB so that your computer can read the data
• Bidirectional data conversion
• Use our GPS160 for PC integration
• Low-cost simple solution
• The computer is able to fit more than one adaptor
• 4800, 9600, 38400 and 115200 baud compatible
• Built-in indicator lights flash to show data is receiving and transmitting
• Easy plug-and-play connection to most computers
