Mast/Rail Mount (ZCELN275F) For Antenna

KEY FEATURES

Heavy duty mast or rail mounting bracket for installation of all our antennas with 1”-14 threaded base on a vertical or horizontal pole. The mount is made from PU powder-coated diecast aluminum.

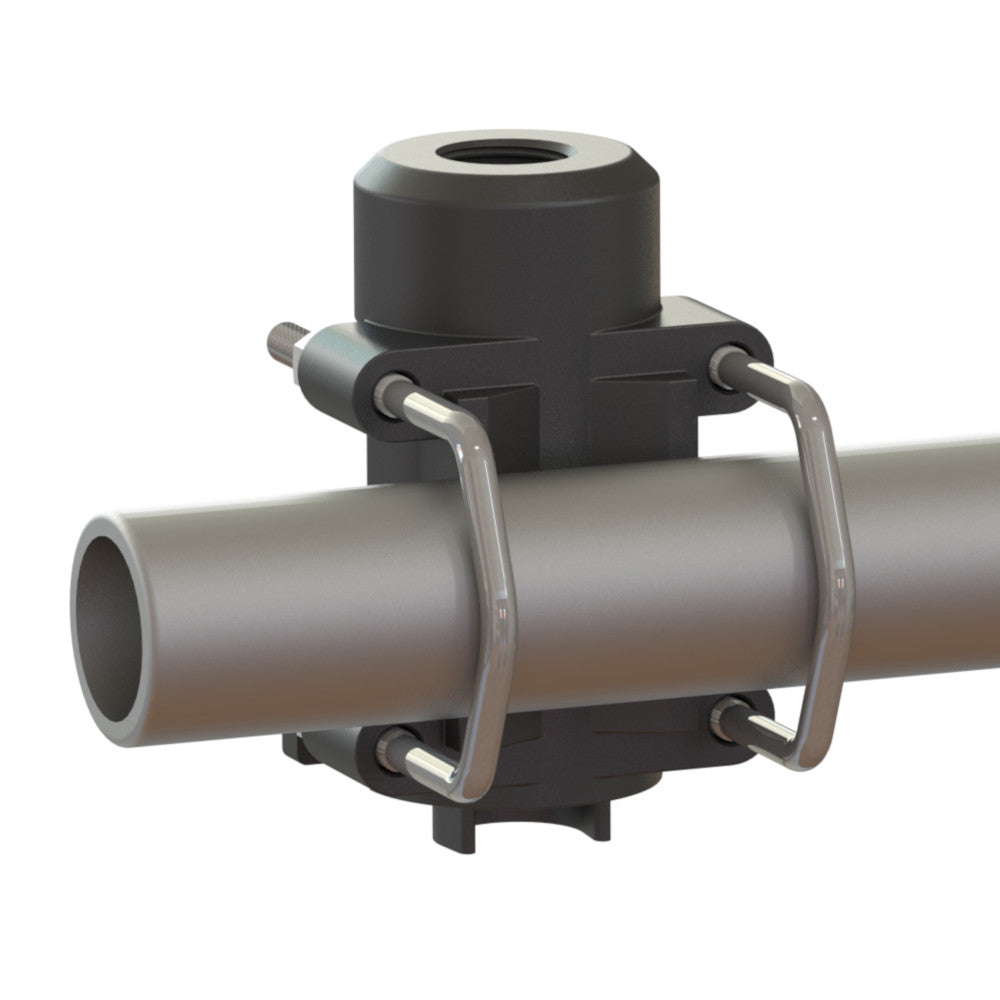

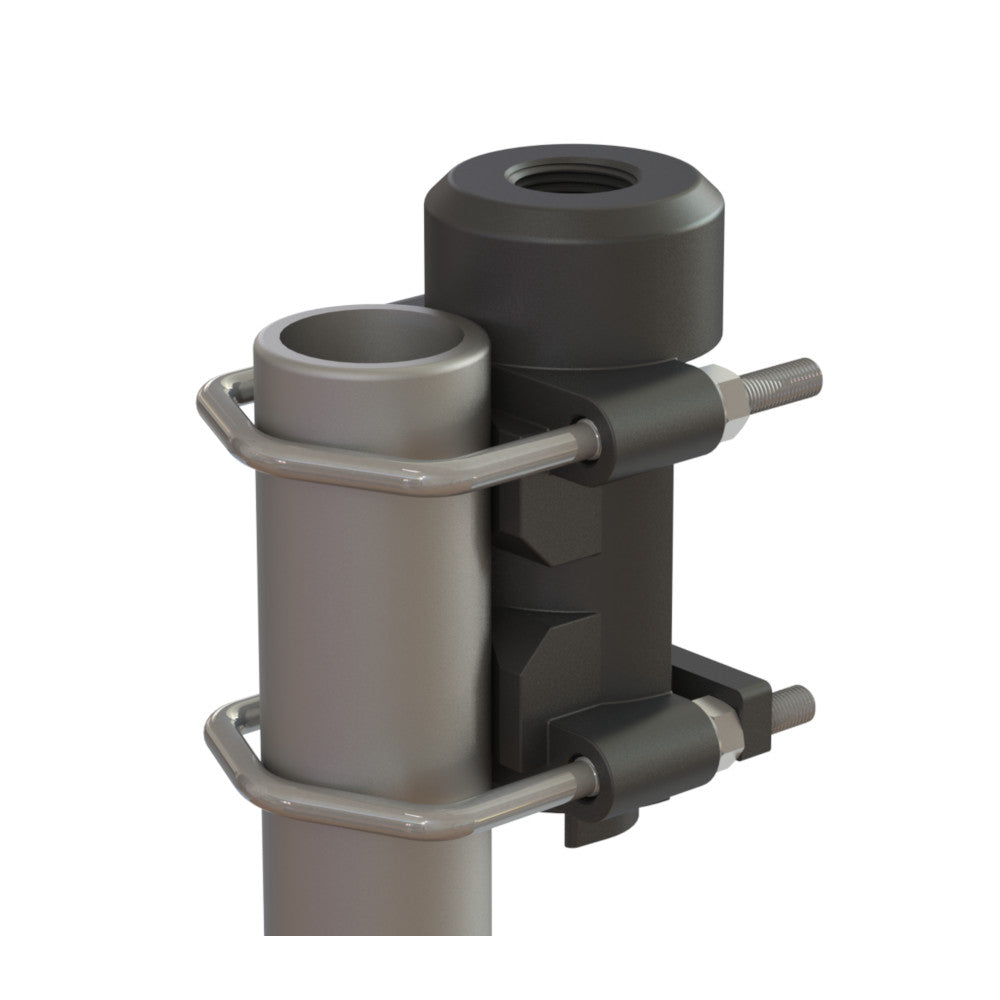

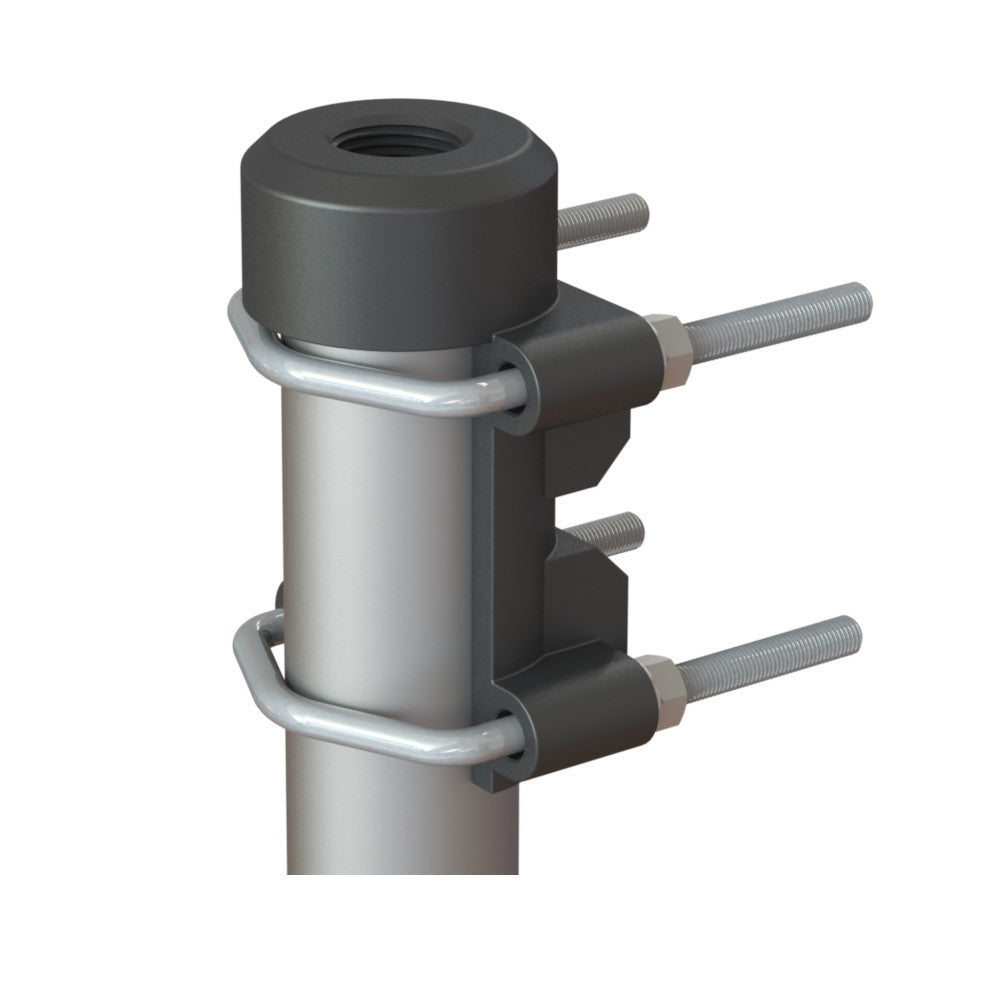

You can mount the bracket vertically overhead or alternatively on side of poles Ø 38 – 60 mm and horizontally on side beams Ø 30 – 60 mm. Moreover, there is the option to mount it on a wall with screws (not supplied). Stainless steel hardware is also included.

Ideal mount for commercial vessels with the capability to affix to horizontal or vertical rails. 4G Connect Pro and WL510 antennas simply screw into the top section. Also, suits CX4A AIS tuned commercial antenna

Finally, please note you should protect the connector using adhesive lined heat-shrink or self-amalgamating tape.

SPECIFICATIONS

• Mast or rail mounting bracket
• Mounting on a vertical or horizontal pole or rail with a diameter Ø 38-60 mm
• Optionally mounting on the wall with screws (not supplied)

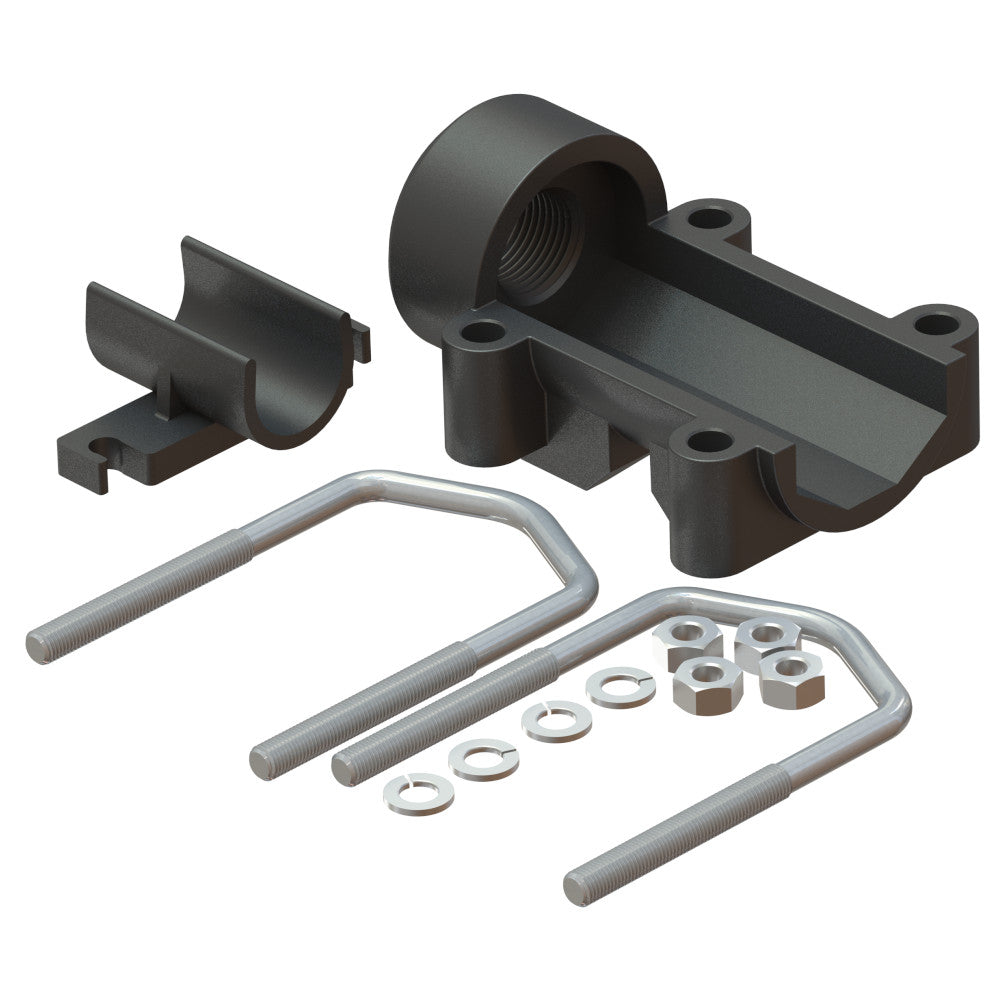

• Supplied with U-bolts
• Standard 1 in-14 thread
• Diecast aluminum and stainless steel
• Heavy duty construction
