MIMO-4-17 7-in-1 Antenna

MIMO-4-17 7-in-1 Antenna

Regular price £258.17 GBP
Regular price £301.23 GBP Sale price £258.17 GBP
Sale Sold out
Shipping calculated at checkout.

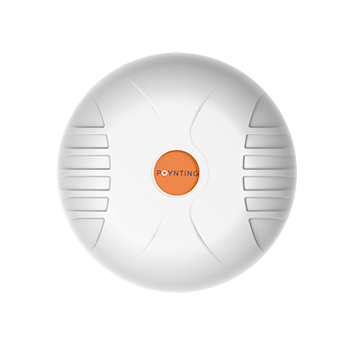

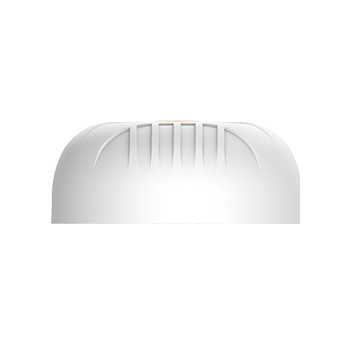

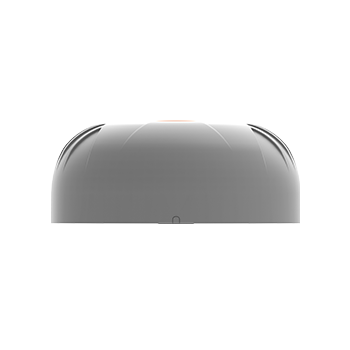

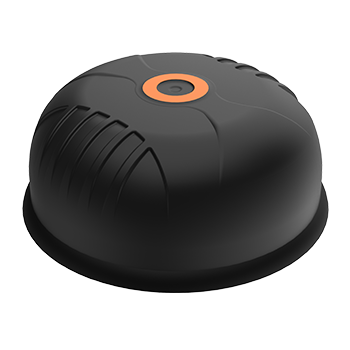

MIMO-4-17  7-in-1 Antenna

  • 7-in-1 High performance multi frequency automoitve antenna
  • Ultra-wideband coverage from 617 to 6000 MHz for cellular
  • 4x4 MIMO LTE/5G, 2x2 MIMO Wi-Fi & GPS/GLONASS
  • Robust and weather resistant antenna with an IP69K rating
  • Ideal for transportation and marine implementation
  • Multi mounting options for ease of installation

The MIMO-4-17 is a high-performance 7-in-1 antenna, compactly designed for versatility. It houses four cellular, two Wi-Fi, and a GPS/GLONASS antenna, covering frequencies from 617 to 6000 MHz. Its wideband cellular coverage supports LTE/4G and future 5G bands, ensuring compatibility across operators and technologies. With dual-band Wi-Fi antennas operating at 2.4 GHz and 5 to 7.2 GHz, it enables 2x2 MIMO capability. Designed with meticulous attention, it surpasses competitors, offering excellent balance between omni-directionality and pattern diversity. Tailored for transportation and marine applications, including commercial vehicles, marine vessels, M2M, and IoT systems, it remains future-proof across a wide frequency range.

617 - 7200 MHz; 4x4 LTE/5G (MIMO), 6dBi; 2x2 Wi-Fi (MIMO), 6.5dBi; GPS/GLONASS, 21dBi

COAX Cable Type

RTK-031

COAX Cable Length 2m





Click here for  more product details and technical sales sheet.
