Antenna Marine - Cross-Polarized, Omni-Directional 5G/LTE & Wi-Fi (EPNT-1)

• Antenna enclosure with high performance antennas
• Wideband 4x4 MIMO 4G/5G antenna
• 2x2 MIMO dual-band 2.4 GHz and 5 GHz Wi-Fi antennas
• Cross-polarised antennas for improved performance
• Weather, dust and vandal resistant enclosure (IP 65)

• The ePoynt enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The ePoynt-1 (EPNT-1) combines our cross-polarized omni-directional antennas for enhanced performance. This is ideal in built-up areas where there are several base stations close by, but where higher stability and throughput is required due to its enhanced MIMO configuration.
• The EPNT-1 includes four cross-polarized antennas, making it ideal for 4×4 MIMO or dual 2×2 MIMO routers.

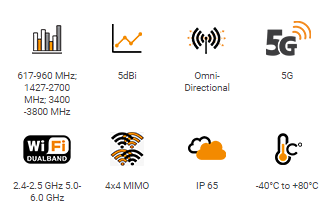

• The antennas offer wideband coverage from 617 to 3800 MHz, making it ideal for LTE & 5G implementation with a peak gain of 5 dBi.
• The EPNT-1 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The EPNT-1 enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP65 rating.

Click here for the Technical Data Sheet.
